Alternative Energy Relays

Alternative Energy Relays

“Alternative energy” relays and contactors are switching components typically designed to be used in applications like solar inverters, battery energy storage systems (BESS), electric vehicles (EV), and electric vehicle charging systems. These parts can be designed to manage AC or DC loads, and the voltage range of the applications range from low voltage to more than 1000 volts. Generally speaking, these components are designed to carry loads efficiently without switching the loads except in fault situations. These components have lower switching cycle life expectancies than appliance or industrial relays which are designed to switch their respective loads on and off every time.

High voltage DC contactors

  • CHEV-P500/E
    500A@1000VDC; SPST-NO-DM; BI-DIRECTIONAL LOAD PASSING
  • CHEV-E/S/NA
    60A-120A@750/1000VDC, SPST-NO-DM, PWM coil/Aux contact/Bi-directional load types
  • CHPV
    20A-600A@1000/1500VDC, SPST-NO-DM, Bi-directional load passing, Aux contact
  • CHEV-H
    250A-400A, SPST-NO-DM, Bi-directional load passing, High resistance to short circuit
  • CHEV-P
    100A-500A, SPST-NO-DM

latching relays

Solar relays

  • CHAR1
    50A-70A, SPST-NO-DM, Switching to 800VAC
  • CHFN-H1
    50A, SPST-NO,2MM GAP MIN
  • CHI05-H
    10A, DPDT, 1.5MM-2MM GAP
  • CHPV
    20A-600A@1000/1500VDC, SPST-NO-DM, Bi-directional load passing, Aux contact
  • CHFN-H
    35A, SPST-NO, 2.25mm gap
  • CHS01-H
    35A, SPST-NO, 1.8mm-2.3mm gap
  • CHI04
    5A-16A, SPST-NO, Switching to 420VDC/300VAC
  • CHAR
    60A-270A, SPST-NO-DM, Switching to 1000VAC

EV charging relays (AC)

  • CHID
    50A@440VAC, SPST-NO, Aux switch (SPST-NC)
  • CHC-L
    63A-90A; SPST-NO; Aux contact; Latching
  • CHS01
    60A carry, SPST-NO
  • CHAR
    60A-270A, SPST-NO-DM, Switching to 1000VAC
  • CHP8
    120A, SPST-NO Latching

EV/battery charging relays (DC)

  • CHC-L
    63A-90A; SPST-NO; Aux contact; Latching
  • CHMR
    0.1A@1000VDC; SPST-NO; Reed relay
  • CHPV
    20A-600A@1000/1500VDC, SPST-NO-DM, Bi-directional load passing, Aux contact
  • CHDR1
    20A-50A, SPST-NO-DM, Switching to 600VDC
  • CHDR
    100A-150A, SPST-NO-DM, 60VDC
  • CHDR-L
    80A-125A, SPST-NO-DM, Latching, Switching to 80VDC
  • CHDC
    200A-400A, SPST-NO-DM, Switching to 80VDC
  • CHEV-P
    100A-500A, SPST-NO-DM

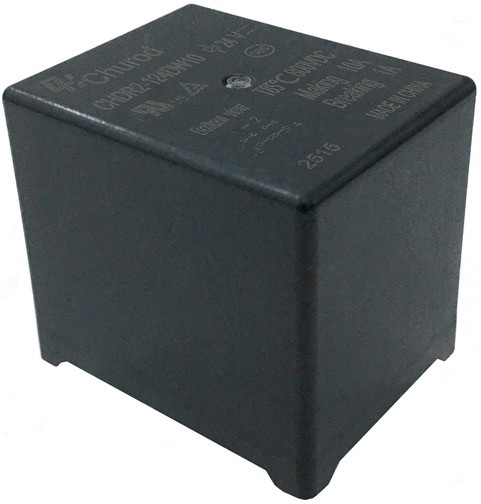

Inverter and base station relays

Battery Pressure Sensor

GEN I

– Mounts in battery pack to sense thermal runaway
– Low power draw standby modes
– CAN or PWM programmable types available
– Quick response, high reliability
– Good signal quality

– FuSa capable
– Automotive grade

GEN II

BPS_Gen_II

– Mounts on BMS
– Very low power consumption (op: <7mA, sleep <0.6mA)
– UART, IIC, or SPI output
– Small size (15mm x 20mm x 5.5mm)
– High accuracy

– Automotive qualified

Gen III

BPS_Gen_3

– Mounts on BMS
– Chip scale package (LGA 18-pin, 5.5mm x 4.0mm)
– UART output
– Very low power consumption (op: <7mA, sleep <0.6mA)
– Consistently high accuracy across temperature range

– Automotive qualified

Current Sensors

Fluxgate

30FCS01-01 SERIES

fluxgate current sensor

– Sensing range from -500A to 500A RMS or DC

– Power consumption <160mA@500A

– Error of <0.3% at room ambient temperature, <0.5% across temperature range (-400 to 850C)

– CAN output with low offset

– EV/PHEV/Charging piles/Energy Storage Equipment

Shunt

8436-4

Shunt_8436-4

– Electron beam welded for precision

– Resistance value of 25µΩ (+/-5%)

– TCR of >50PPM/C (00C to 800C)

– Power rating of 36W

– Operating temperature range of -650C to 1700C

– Customizable
